深圳市汇创佳电子有限公司

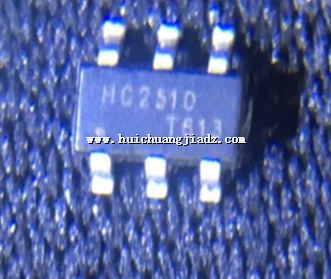

HC2510C




1

HC2510C

Features
l Phase - Locked Loop Clock Distribution for
Synchronous DRAM Applications
l Supports PC - 100 and Meets “ PC100 SDRAM
registered DIMM Specification Rev. 1.2 ”
l Distributes One Clock Input to One Bank of Ten
Outputs
l No External RC Network Required
l External Feedback (FBIN) Pin is Used to
Synchronize the Outputs to the Clock Input
l Separate Output Enable for Each Output Bank
l Operates at 3.3 V V cc
l 125 MHz Maximum Frequency
l On - chip Series Damping Resistors
l Support Spread Spectrum Clock(SSC)
Synthesizers
l ESD Pro tection Exceeds 3000 V per MIL - STD -
883, Method 3015 ; Exceeds 350 V Using
Machine Model ( C = 200 pF, R = 0 )
l Latch - Up Performance Exceeds 400 mA per
