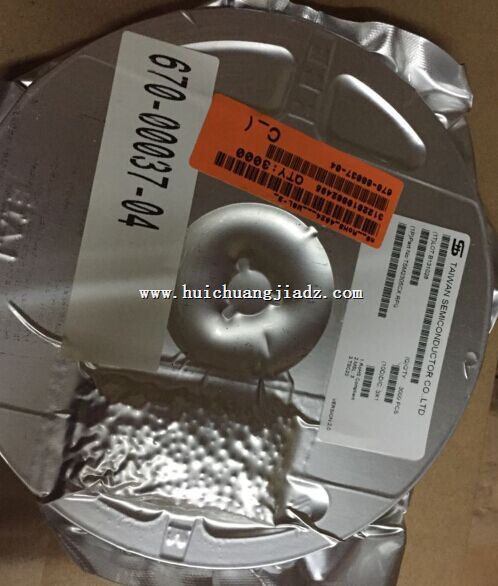

Part Number TSM2305CX Description -20V, -3.2A, Single P-Channel Power MOSFET Category Discrete Devices MOSFET P-Channel Type P-Channel Configuration Single Package SOT-23 VDS (V) -20 VGS ±(V) 8 ID Max. (A) -3.2 RDS(ON) @ 4.5V Max. (mΩ) 55 RDS(ON) @ 4.5V Typ. (mΩ) 44 RDS(ON) @ 2.5V Max. (mΩ) 80 RDS(ON) @ 2.5V Typ. (mΩ) 65 RDS(ON) @ 1.8V Max. (mΩ) 130 RDS(ON) @ 1.8V Typ. (mΩ) 90 Qg (nC) @ 4.5V 10 Qgd (nC) 4 Qgs (nC) 0.7 Ciss (pF) 990 Coss (pF) 125 Crss (pF) 100 MSL 3 Status Active VGS(th) Max. (V) -1 VGS(th) Min. (V) -0.45
